HP · Desktop
ProDesk 400

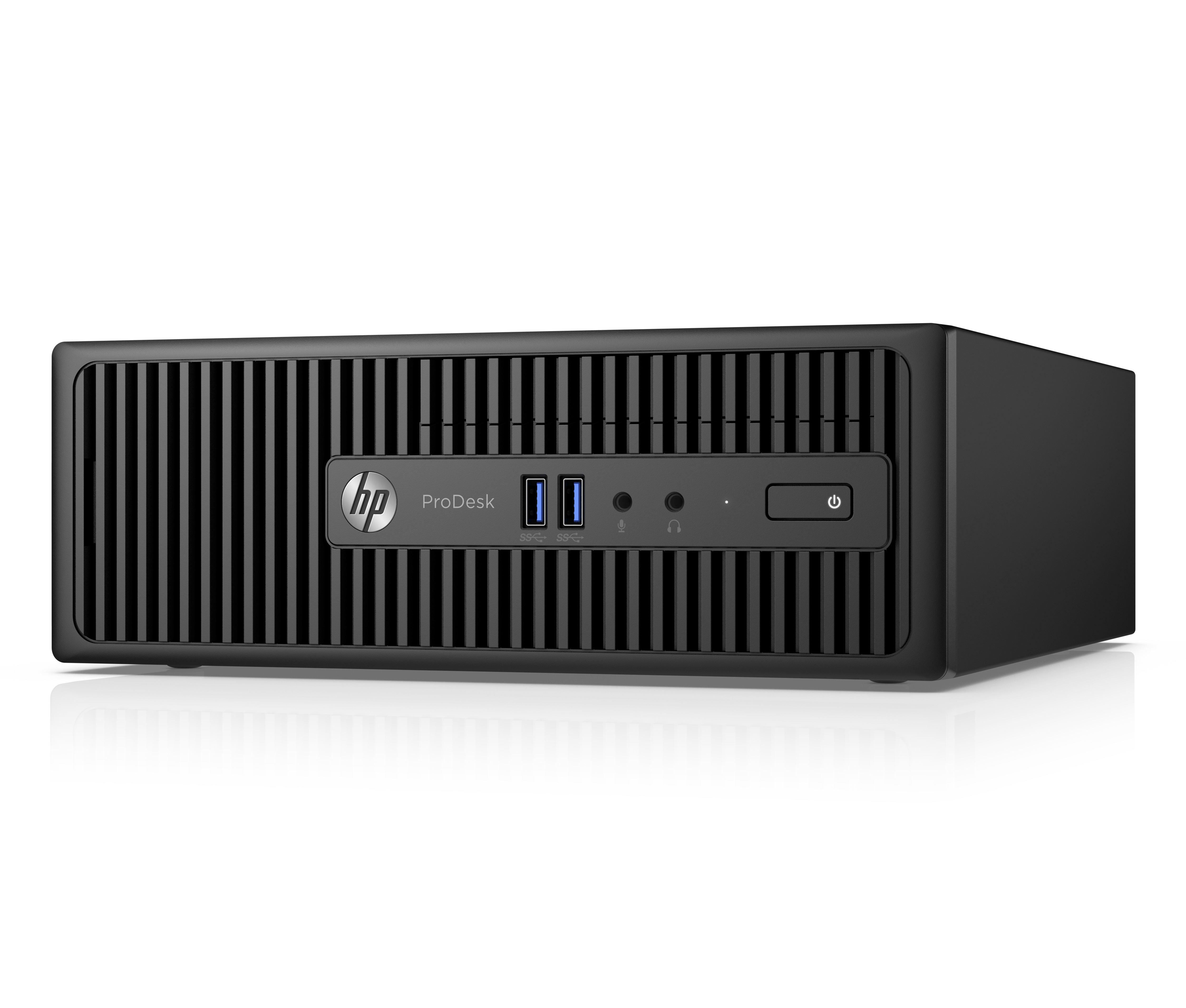

HP ProDesk 400 G3 小型電腦. Processor frequency: 3.7 GHz, Processor family: Intel® Core™ i3, Processor model: i3-6100. Internal memory: 8 GB, Internal memory type: DDR4-SDRAM, Memory clock speed: 2133 MHz. Total storage capacity: 256 GB, Storage media: SSD, Optical drive type: DVD-ROM. On-board graphics card model: Intel® HD Graphics 530. Operating system installed: Windows 10 Pro, Operating system architecture: 64-bit. Power supply: 180 W. Chassis type: SFF. Product type: PC
Get this device repaired
Verified shops on RepairYour.Tech document every repair to the Device Passport — real records, not guesses.
Find a verified shop Specifications
Audio
| Audio chip | Realtek HD ALC221-VB |
Design
| Chassis type | SFF |
| Product colour | Black |
| Country of origin | China |
Memory
| Memory slots | 2x DIMM |
| Internal memory | 8 GB |
| Memory channels | Dual-channel |
| Memory clock speed | 2133 MHz |
| Internal memory type | DDR4-SDRAM |
| Maximum internal memory | 32 GB |
| Memory layout (slots x size) | 1 x 8 GB |
Network
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Storage
| SSD capacity | 256 GB |
| SSD interface | SATA |
| Storage media | SSD |
| Optical drive type | DVD-ROM |
| Total SSDs capacity | 256 GB |
| Card reader integrated | No |
| Total storage capacity | 256 GB |
| Number of SSDs installed | 1 |
Graphics
| Discrete graphics card | No |
| On-board graphics card | Yes |
| On-board graphics card ID | 0x1912 |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel® HD Graphics 530 |
| Maximum on-board graphics card memory | 1.7 GB |
| On-board graphics card OpenGL version | 4.4 |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card dynamic frequency (max) | 1050 MHz |
| Number of displays supported (on-board graphics) | 3 |
Software
| Operating system installed | Windows 10 Pro |
| Operating system architecture | 64-bit |
Processor
| Tcase | 65 °C |
| Bus type | DMI3 |
| Processor cache | 3 MB |
| Processor cores | 2 |
| Processor model | i3-6100 |
| System bus rate | 8 GT/s |
| Processor family | Intel® Core™ i3 |
| Processor series | Intel Core i3-6100 series |
| Processor socket | LGA 1151 (Socket H4) |
| Processor threads | 4 |
| Processor codename | Skylake |
| Processor frequency | 3.7 GHz |
| Processor cache type | L3 |
| Processor generation | 6th gen Intel® Core™ i3 |
| Processor lithography | 14 nm |
| Processor manufacturer | Intel |
| PCI Express slots version | 3.0 |
| Processor operating modes | 64-bit |
| ECC supported by processor | Yes |
| PCI Express configurations | 1x16, 1x8+2x4, 2x8 |
| Thermal Design Power (TDP) | 51 W |
| Number of processors installed | 1 |
| Maximum number of PCI Express lanes | 16 |
| Memory types supported by processor | DDR3L-SDRAM, DDR4-SDRAM |
| Memory voltage supported by processor | 1.35 V |
| Memory clock speeds supported by processor | 1333,1600,1866,2133 MHz |
| Memory bandwidth supported by processor (max) | 34.1 GB/s |
| Maximum internal memory supported by processor | 64 GB |
Performance
| Product type | PC |
| Motherboard chipset | Intel® H110 |
Optical drive
| Optical drives quantity | 1 |
Ports & interfaces
| Line-in | Yes |
| DVI port | No |
| Line-out | Yes |
| Microphone in | Yes |
| Headphone outputs | 1 |
| PS/2 ports quantity | 2 |
| DisplayPorts quantity | 1 |
| Serial ports quantity | 1 |
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
Processor special features
| Intel 64 | Yes |
| Idle States | Yes |
| Scalability | 1S |
| Intel TSX-NI | No |
| Processor code | SR2HG |
| Intel® OS Guard | Yes |
| Intel® Insider™ | Yes |
| Intel® Secure Key | Yes |
| Execute Disable Bit | Yes |
| Intel® Smart Cache | Yes |
| Processor package size | 37.5 x 37.5 mm |
| CPU configuration (max) | 1 |
| Intel Enhanced Halt State | Yes |
| Embedded options available | Yes |
| Graphics & IMC lithography | 14 nm |
| Supported instruction sets | SSE4.1, SSE4.2 |
| Intel Clear Video Technology | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Thermal solution specification | PCG 2015C |
| Thermal Monitoring Technologies | Yes |
| Intel Trusted Execution Technology | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Wireless Display (Intel® WiDi) | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Small Business Advantage (Intel® SBA) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
