HP · Laptop · 2024
EliteBook 840
HP EliteBook 840 G3 Notebook PC (ENERGY STAR). Product type: Ultrabook, Form factor: Clamshell. Processor family: Intel® Core™ i7, Processor model: i7-6500U, Processor frequency: 2.5 GHz. Display diagonal: 35.6 cm (14"), HD type: Full HD, Display resolution: 1920 x 1080 pixels. Internal memory: 8 GB, Internal memory type: DDR4-SDRAM. Total storage capacity: 256 GB, Storage media: SSD. Mobile network generation: 4G. Operating system installed: Windows 7 Professional. Product colour: Silver
Get this device repaired
Verified shops on RepairYour.Tech document every repair to the Device Passport — real records, not guesses.
Find a verified shop Specifications
Audio
| Built-in microphone | Yes |
| Speakers manufacturer | Bang & Olufsen |
| Number of built-in speakers | 2 |
Design
| Form factor | Clamshell |
| Product type | Ultrabook |
| Product colour | Silver |
| Country of origin | China |
Memory
| Memory slots | 2x SO-DIMM |
| Internal memory | 8 GB |
| Memory clock speed | 2133 MHz |
| Internal memory type | DDR4-SDRAM |
| Maximum internal memory | 16 GB |
| Memory layout (slots x size) | 1 x 8 GB |
Display
| HD type | Full HD |
| Touchscreen | No |
| LED backlight | Yes |
| Display surface | Matt |
| Display diagonal | 35.6 cm (14") |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
Network
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Ethernet LAN | Yes |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Bluetooth version | 4.2 |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Mobile network connection | Yes |
| Mobile network generation | 4G |
Storage
| SSD capacity | 256 GB |
| SSD interface | SATA |
| Storage media | SSD |
| SSD form factor | M.2 |
| Optical drive type | No |
| Total SSDs capacity | 256 GB |
| Card reader integrated | Yes |
| Total storage capacity | 256 GB |
| Compatible memory cards | SD, SDHC, SDXC |
| Number of SSDs installed | 1 |
Graphics
| Discrete graphics card | No |
| On-board graphics card | Yes |
| On-board graphics card ID | 1916 |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel® HD Graphics 520 |
| On-board graphics card family | Intel® HD Graphics |
| Maximum on-board graphics card memory | 1.74 GB |
| On-board graphics card OpenGL version | 4.4 |
| On-board graphics card base frequency | 300 MHz |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card dynamic frequency (max) | 1050 MHz |
Keyboard
| Numeric keypad | No |
| Pointing device | Touchpad |
| Keyboard backlit | Yes |
| Spill-resistant keyboard | Yes |
Software
| Recovery operating system | Windows 10 Pro |
| Operating system installed | Windows 7 Professional |
| Operating system architecture | 64-bit |
Processor
| Bus type | OPI |
| Stepping | D1 |
| Tjunction | 100 °C |
| Processor cache | 4 MB |
| Processor cores | 2 |
| Processor model | i7-6500U |
| System bus rate | 4 GT/s |
| Processor family | Intel® Core™ i7 |
| Processor series | Intel Core i7-6500 Mobile series |
| Processor socket | LGA 1356 (Socket B2) |
| Processor threads | 4 |
| Processor codename | Skylake |
| Configurable TDP-up | 25 W |
| Processor frequency | 2.5 GHz |
| Processor cache type | Smart Cache |
| Processor generation | 6th gen Intel® Core™ i7 |
| Configurable TDP-down | 7.5 W |
| Processor lithography | 14 nm |
| Processor manufacturer | Intel |
| PCI Express slots version | 3.0 |
| Processor boost frequency | 3.1 GHz |
| Processor operating modes | 64-bit |
| ECC supported by processor | No |
| PCI Express configurations | 1x4, 4x1 |
| Thermal Design Power (TDP) | 15 W |
| Configurable TDP-up frequency | 2.6 GHz |
| Configurable TDP-down frequency | 0.8 GHz |
| Maximum number of PCI Express lanes | 12 |

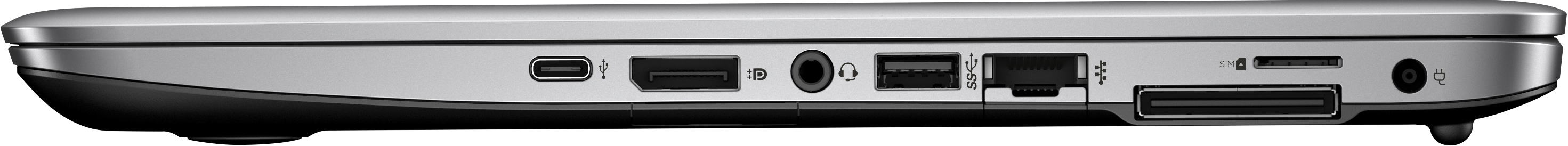

Ports & interfaces
| DVI port | No |
| Docking connector | Yes |
| DisplayPorts quantity | 1 |
| Combo headphone/mic port | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
Brand-specific features
| HP ePrint | Yes |
| HP segment | Business |
| HP 3D DriveGuard | Yes |
| HP Recovery Manager | Yes |
| HP Software provided | HP Noise Reduction, HP Clear Sound, HP BIOSphere with HP Sure Start, HP Client Security, HP Image Assistant, HP SoftPaq Download Manager, HP Connection Manager |
| HP Support Assistant | Yes |
Processor special features
| Intel 64 | Yes |
| Idle States | Yes |
| Intel TSX-NI | No |
| Intel® OS Guard | Yes |
| Intel® Insider™ | Yes |
| Intel® Secure Key | Yes |
| Execute Disable Bit | Yes |
| Processor package size | 42 X 24 mm |
| Intel Flex Memory Access | Yes |
| Intel Enhanced Halt State | Yes |
| Supported instruction sets | SSE4.1, SSE4.2, AVX 2.0 |
| Intel Clear Video Technology | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Thermal Monitoring Technologies | Yes |
| Intel® Smart Response Technology | Yes |
| Intel Trusted Execution Technology | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Wireless Display (Intel® WiDi) | Yes |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Small Business Advantage (Intel® SBA) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
