Dell · Laptop

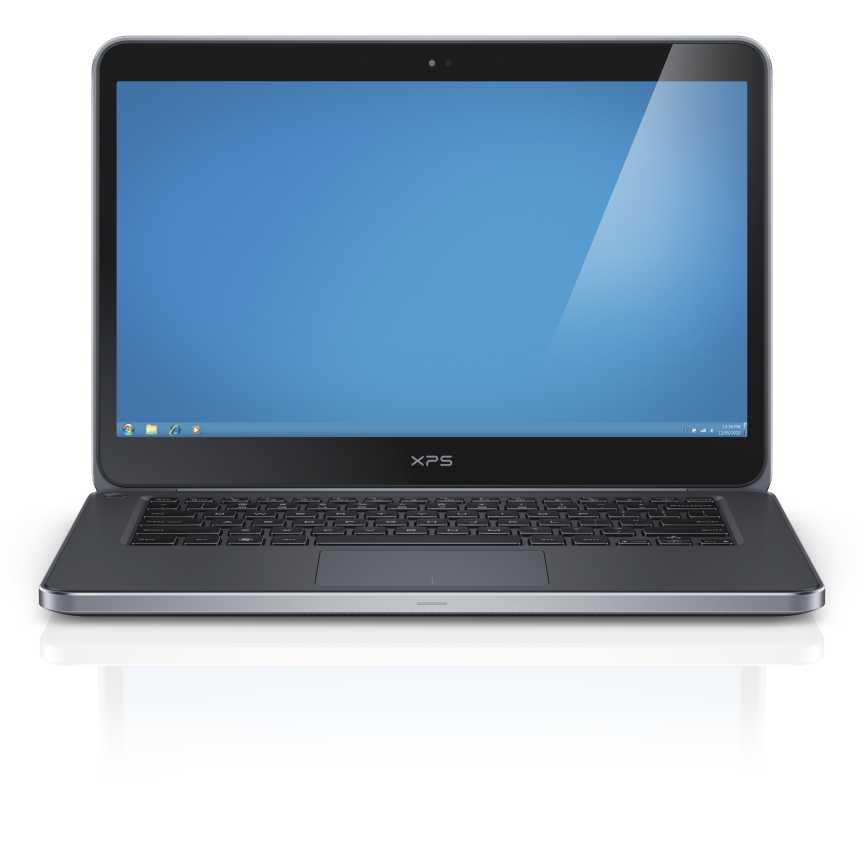

XPS 14
DELL XPS 14. Form factor: Clamshell. Processor family: Intel® Core™ i5, Processor model: i5-3317U, Processor frequency: 1.7 GHz. Display diagonal: 35.6 cm (14"), HD type: HD+, Display resolution: 1600 x 900 pixels. Internal memory: 4 GB, Internal memory type: DDR3-SDRAM. Total storage capacity: 532 GB, Storage media: HDD+SSD. On-board graphics card model: Intel® HD Graphics 4000. Operating system installed: Windows 7 Home Premium. Product colour: Silver. Weight: 2.1 kg
Get this device repaired
Verified shops on RepairYour.Tech document every repair to the Device Passport — real records, not guesses.
Find a verified shop Specifications
Audio
| Audio system | HD Audio + Waves MaxxAudio 4 |
| Speaker power | 4 W |
| Built-in microphone | Yes |
| Number of built-in speakers | 2 |
Camera
| Front camera resolution (numeric) | 1.3 MP |
Design
| Form factor | Clamshell |
| Product colour | Silver |
| Housing material | Aluminium, Magnesium |
Memory
| Memory slots | 1x SO-DIMM |
| Internal memory | 4 GB |
| Memory clock speed | 1333 MHz |
| Internal memory type | DDR3-SDRAM |
| Maximum internal memory | 8 GB |
| Memory layout (slots x size) | 1 x 4 GB |
Display
| HD type | HD+ |
| Display diagonal | 35.6 cm (14") |
| Display resolution | 1600 x 900 pixels |
| Native aspect ratio | 16:9 |
Network
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Ethernet LAN | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Bluetooth version | 4.0 |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| Integrated 4G WiMAX | Yes |
Storage
| HDD speed | 5400 RPM |
| HDD capacity | 500 GB |
| SSD capacity | 32 GB |
| SSD interface | Micro SATA |
| Storage media | HDD+SSD |
| Optical drive type | No |
| Card reader integrated | Yes |
| Total storage capacity | 532 GB |
| Number of HDDs installed | 1 |
| Number of SSDs installed | 1 |
Graphics
| Graphics card family | Intel |
| On-board graphics card | Yes |
| On-board graphics card ID | 0x166 |
| On-board graphics card model | Intel® HD Graphics 4000 |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1050 MHz |
Keyboard
| Numeric keypad | No |
| Pointing device | Touchpad |
| Keyboard backlit | Yes |
| Full-size keyboard | Yes |
| Spill-resistant keyboard | Yes |
Software
| Trial software | McAfee 30d |
| Bundled software | Adobe Reader X Microsoft Office Starter WebCam Central Skype 5 Internet Explorer Windows Live Essentials Wave 4 Dell DataSafe |
| Operating system installed | Windows 7 Home Premium |
| Operating system architecture | 64-bit |
Processor
| Bus type | DMI |
| Stepping | L1 |
| Tjunction | 105 °C |
| FSB Parity | No |
| Processor cache | 3 MB |
| Processor cores | 2 |
| Processor model | i5-3317U |
| System bus rate | 5 GT/s |
| Processor family | Intel® Core™ i5 |
| Processor series | Intel Core i5-3300 Mobile series |
| Processor socket | BGA 1023 |
| Processor threads | 4 |
| Processor codename | Ivy Bridge |
| Processor frequency | 1.7 GHz |
| Processor cache type | Smart Cache |
| Processor generation | 3rd gen Intel® Core™ i5 |
| Processor lithography | 22 nm |
| Processor manufacturer | Intel |
| PCI Express slots version | 2.0 |
| Processor boost frequency | 2.6 GHz |
| Processor operating modes | 64-bit |
| ECC supported by processor | No |
| PCI Express configurations | 1x16, 2x8, 1x8+2x4 |
| Thermal Design Power (TDP) | 17 W |
| CPU multiplier (bus/core ratio) | 17 |
| Maximum number of PCI Express lanes | 16 |
Performance
| Motherboard chipset | Intel HM77 Express |
Ports & interfaces
| DVI port | No |
| Microphone in | No |
| SmartCard slot | No |
| S/PDIF out port | No |
| ExpressCard slot | No |
| HDMI ports quantity | 1 |
| CardBus PCMCIA slot type | No |
| Combo headphone/mic port | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Mini DisplayPorts quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
