Asus · Laptop

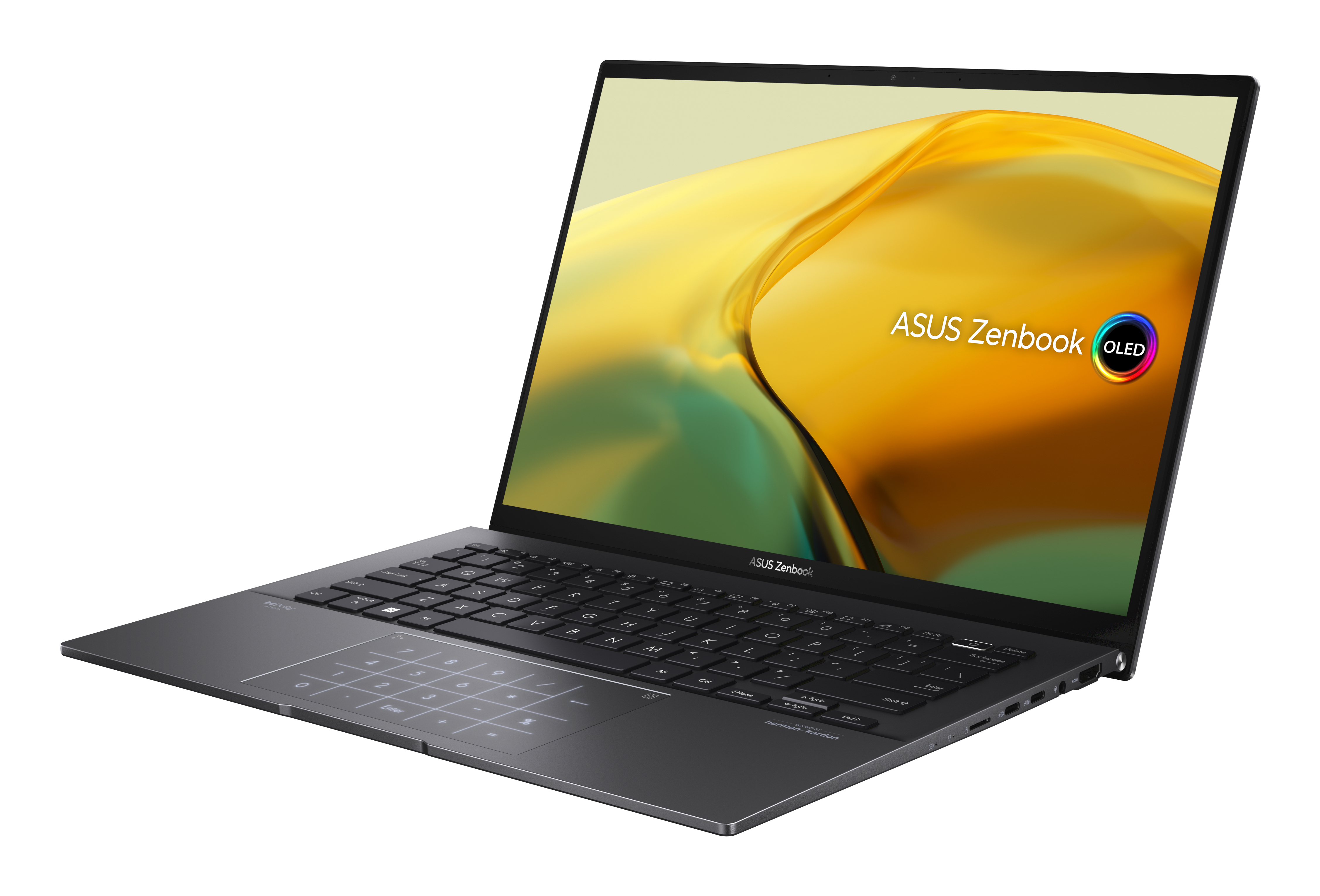

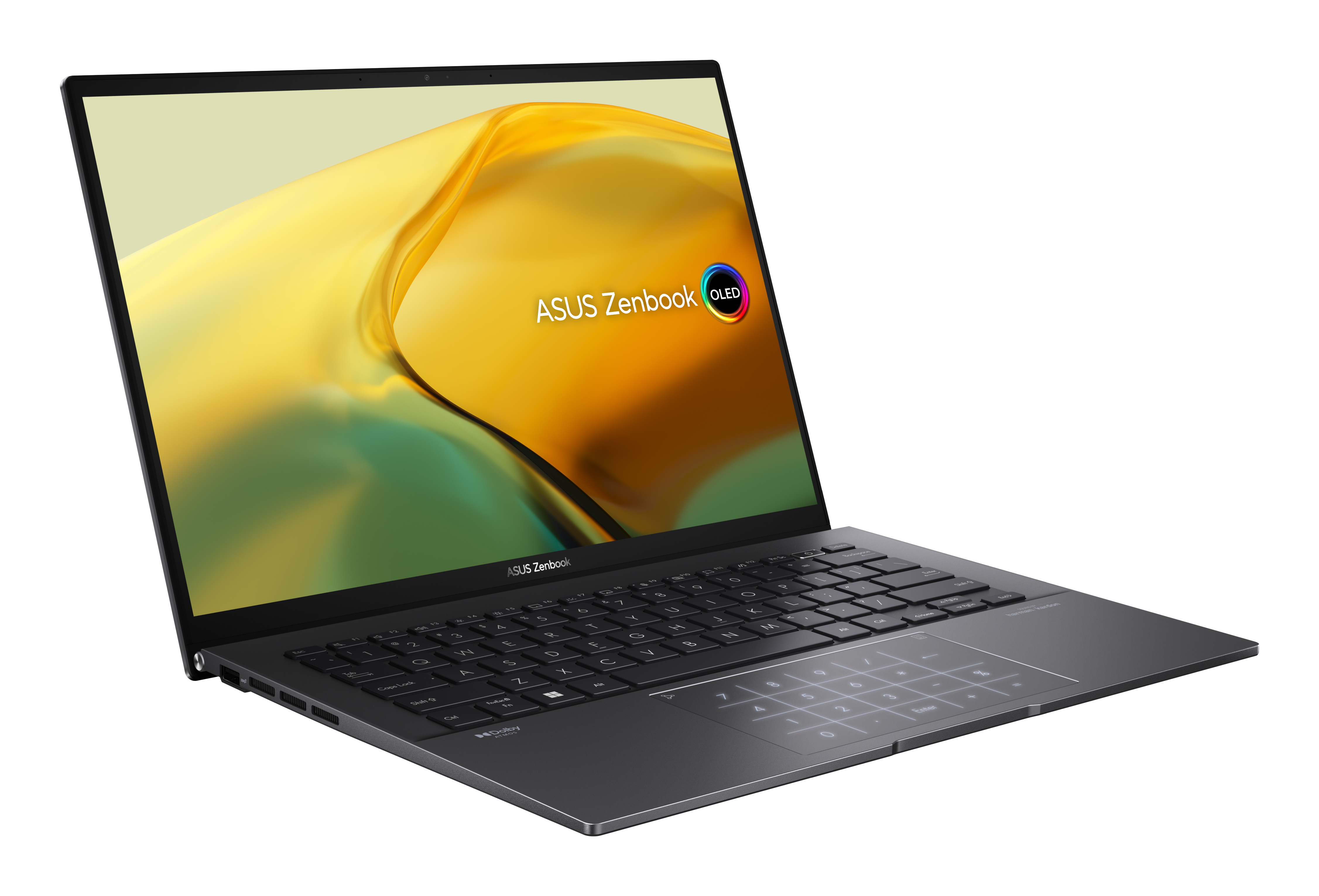

Zenbook 14 OLED
ASUS Zenbook 14 OLED UM3402YA. Product type: Laptop, Form factor: Clamshell. Processor family: AMD Ryzen™ 5, Processor model: 7430U, Processor frequency: 2.3 GHz. Display diagonal: 35.6 cm (14"), HD type: WQXGA+, Display resolution: 2880 x 1800 pixels. Internal memory: 16 GB, Internal memory type: LPDDR4x-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: AMD Radeon Graphics. Operating system installed: Windows 11 Home. Product colour: Black
Get this device repaired
Verified shops on RepairYour.Tech document every repair to the Device Passport — real records, not guesses.
Find a verified shop Specifications
Audio
| Audio system | Smart Amp |
| Built-in microphone | Yes |
| Speakers manufacturer | Harman Kardon |
Camera
| Front camera | Yes |
| Front camera HD type | Full HD |
| Front camera resolution | 1920 x 1080 pixels |
Design
| Colour name | Jade Black |
| Form factor | Clamshell |
| Product type | Laptop |
| Product colour | Black |
| Market positioning | Home |
Memory
| Internal memory | 16 GB |
| Memory form factor | On-board |
| Internal memory type | LPDDR4x-SDRAM |
| Maximum internal memory | 16 GB |
Battery
| Battery capacity | 75 Wh |
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 4 |
Display
| HD type | WQXGA+ |
| Panel type | OLED |
| Touchscreen | No |
| Colour gamut | 100% |
| Display surface | Gloss |
| Display diagonal | 35.6 cm (14") |
| RGB colour space | DCI-P3 |
| Display resolution | 2880 x 1800 pixels |
| Native aspect ratio | 16:10 |
| Maximum refresh rate | 90 Hz |
Network
| Bluetooth | Yes |
| Antenna type | 2x2 |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Bluetooth version | 5.3 |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Mobile network connection | No |
Storage
| NVMe | Yes |
| SSD capacity | 512 GB |
| SSD interface | PCI Express 3.0 |
| Storage media | SSD |
| SSD form factor | M.2 |
| Optical drive type | No |
| Total SSDs capacity | 512 GB |
| Card reader integrated | Yes |
| Total storage capacity | 512 GB |
| Compatible memory cards | MicroSD (TransFlash) |
| Number of SSDs installed | 1 |
Graphics
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board graphics card model | AMD Radeon Graphics |

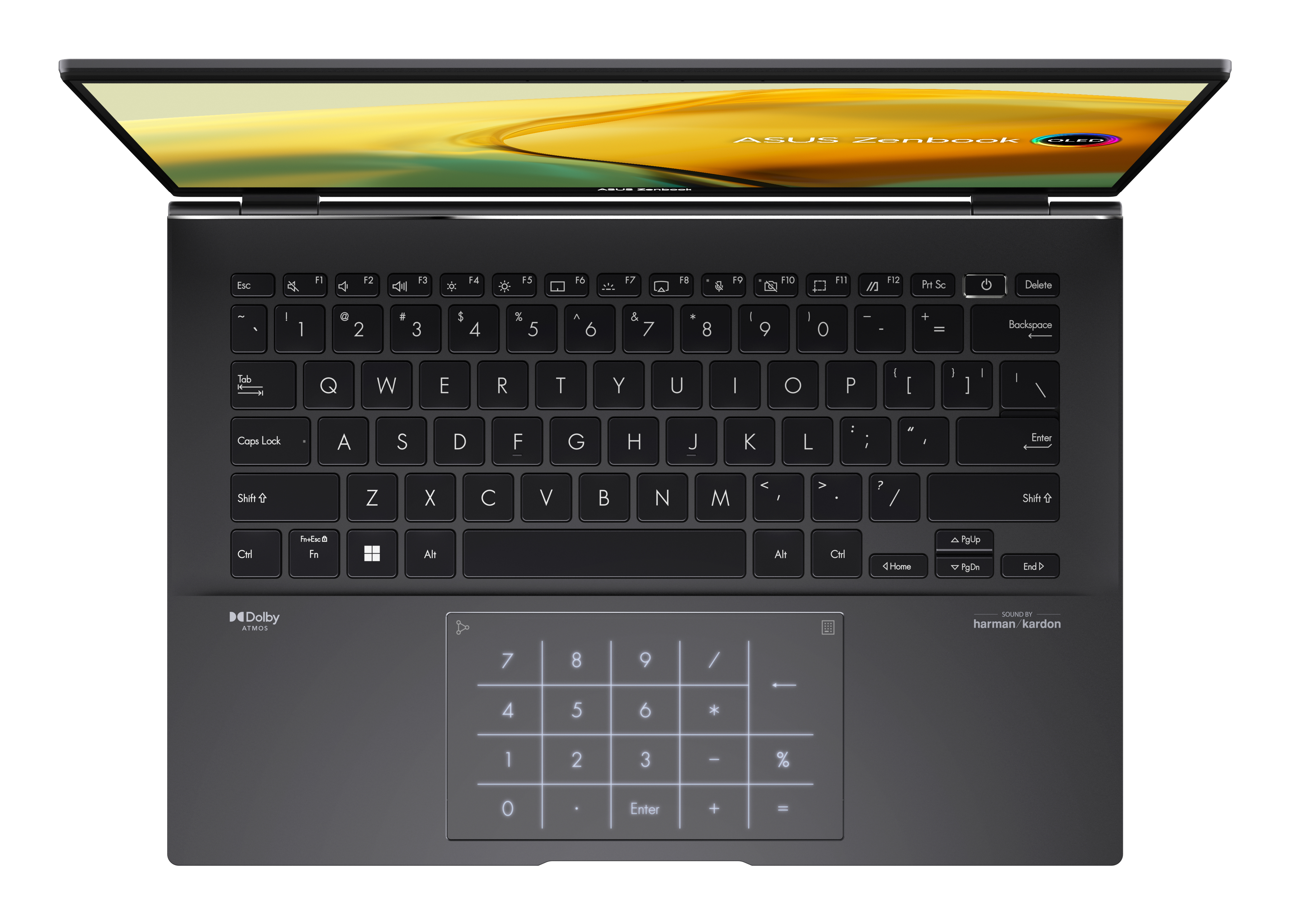

Keyboard
| Numeric keypad | No |
| Pointing device | NumberPad |
| Keyboard backlit | Yes |
Software
| Operating system installed | Windows 11 Home |
| Operating system architecture | 64-bit |
Processor
| Processor cache | 16 MB |
| Processor cores | 6 |
| Processor model | 7430U |
| Processor family | AMD Ryzen™ 5 |
| Processor frequency | 2.3 GHz |
| Processor cache type | L3 |
| Processor generation | AMD Ryzen 7000 Series |
| Processor manufacturer | AMD |
| Processor boost frequency | 4.3 GHz |
Ports & interfaces
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| Combo headphone/mic port | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
