Asus · Networking

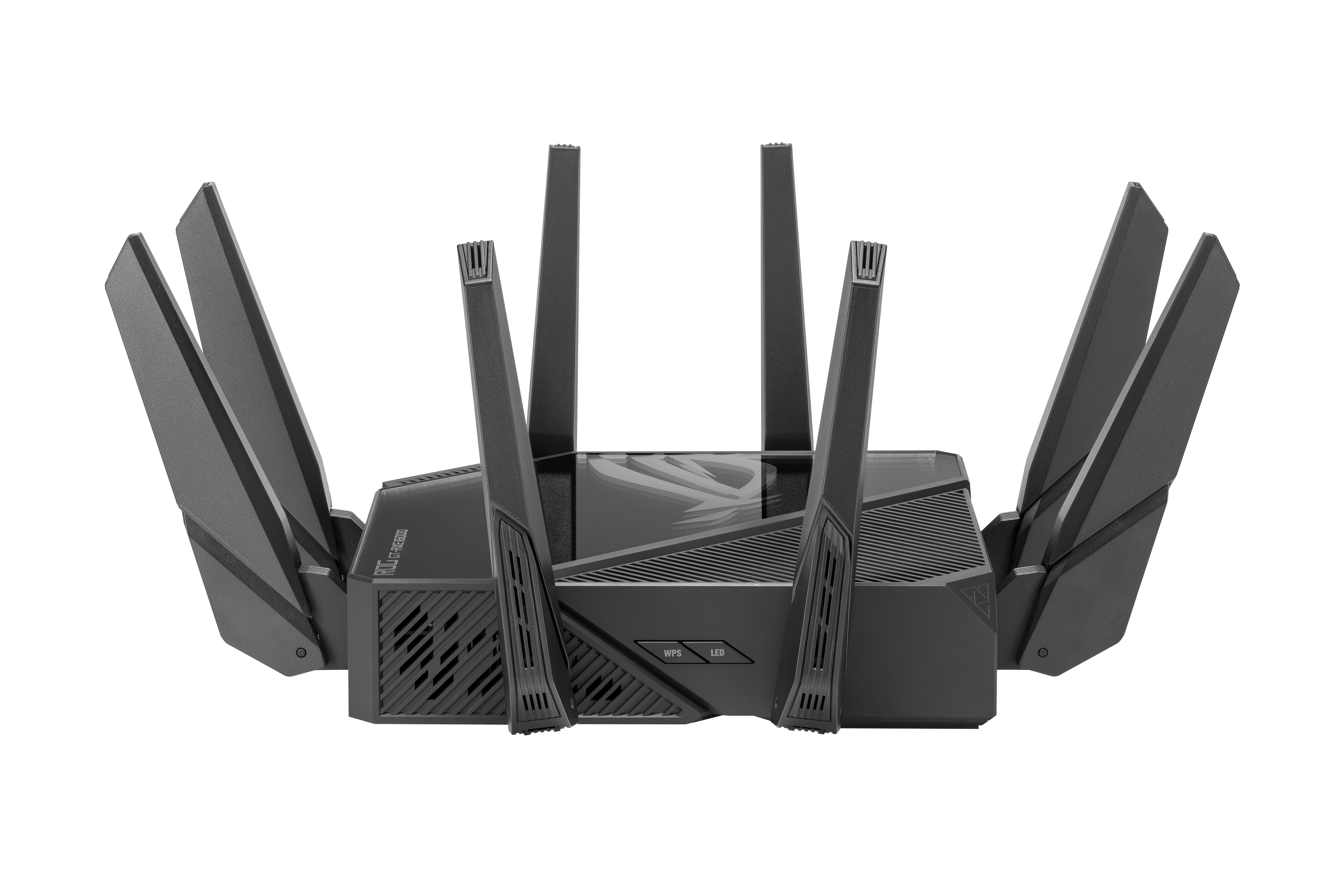

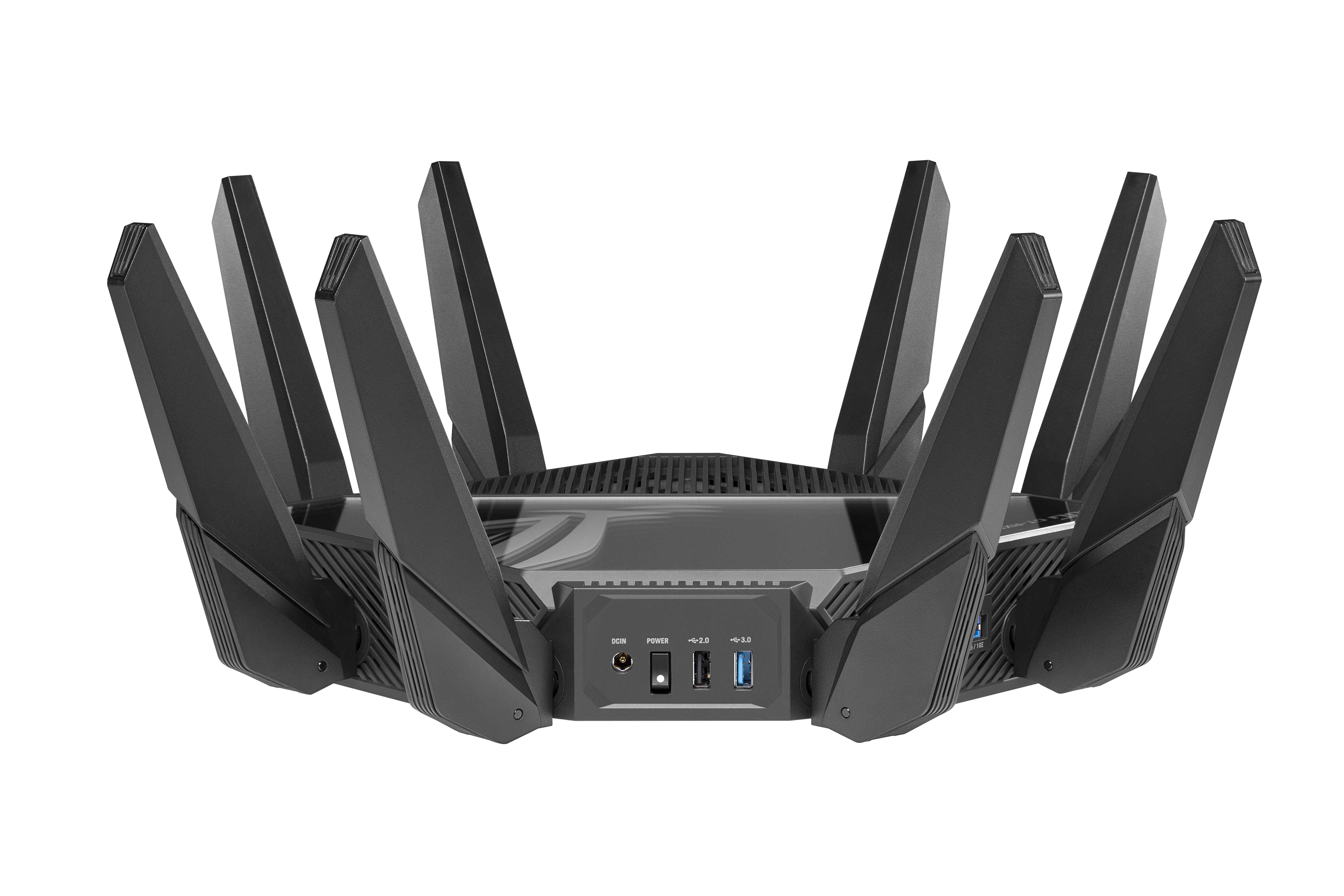

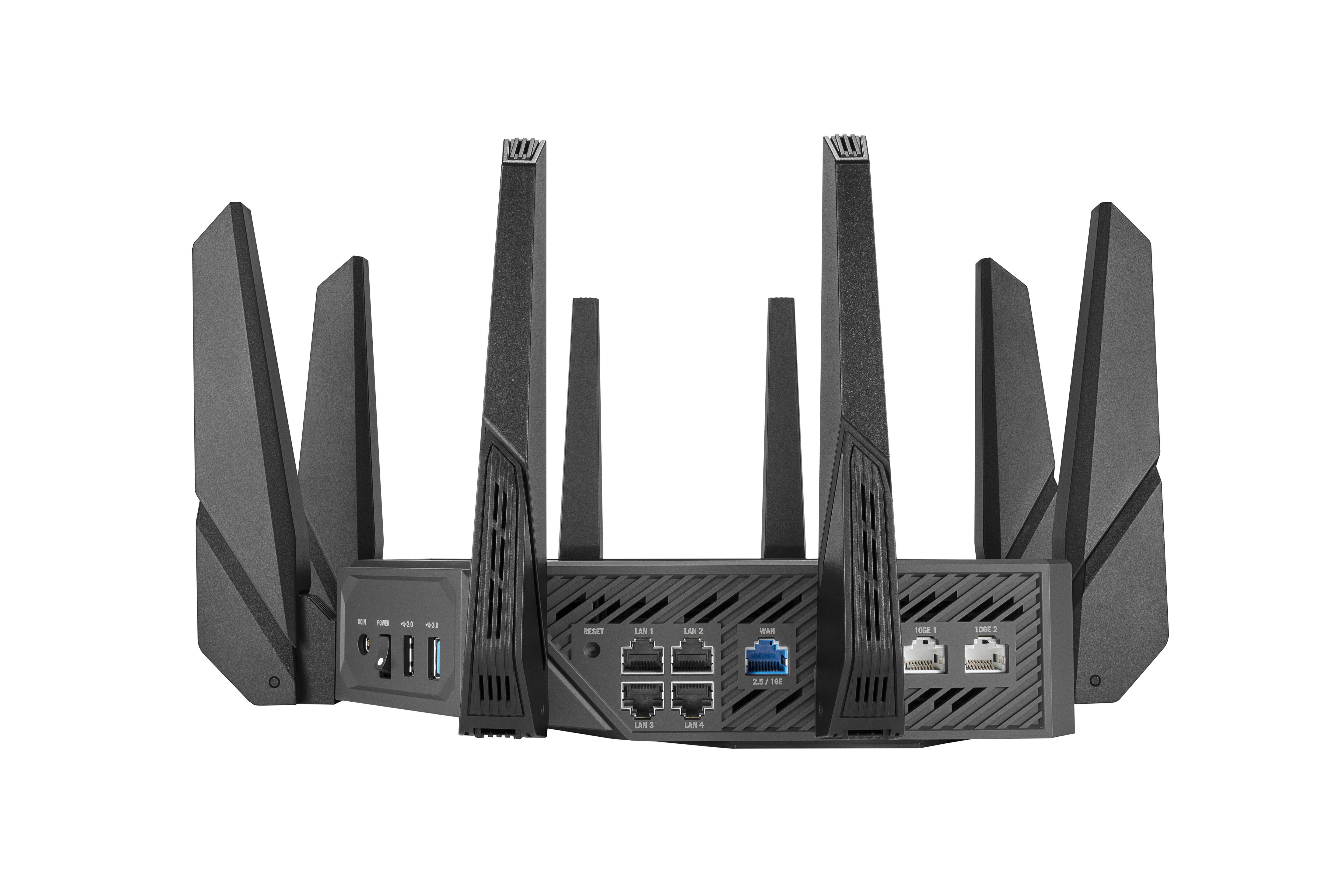

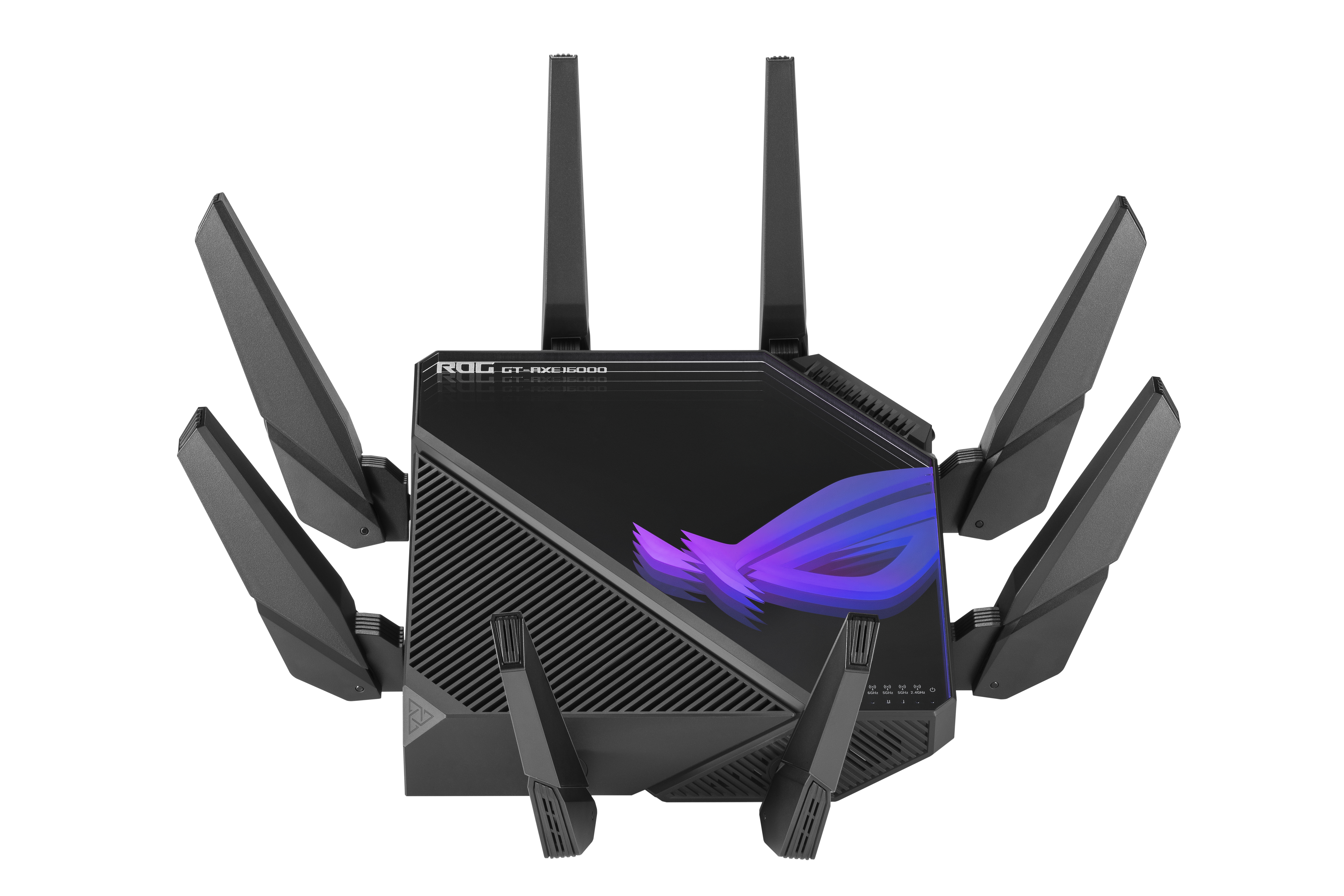

ROG Rapture GT-AXE16000
ASUS ROG Rapture GT-AXE16000. WAN connection type: RJ-45. Wi-Fi band: Tri-band (2.4 GHz / 5 GHz / 6 GHz), Top Wi-Fi standard: Wi-Fi 6E (802.11ax), WLAN data transfer rate (max): 4804 Mbit/s. Ethernet LAN interface type: 10 Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000,2500,10000 Mbit/s, Cabling technology: 10/100/1000Base-T(X). Beamforming frequency: 6 GHz. Product type: Tabletop router, Product colour: Black, LED indicators: Activity, LAN, Power, WAN
Get this device repaired
Verified shops on RepairYour.Tech document every repair to the Device Passport — real records, not guesses.
Find a verified shop Specifications
Power
| Output current | 3.42 A |
| Output voltage | 19 V |
| AC input voltage | 110 - 240 V |
| Power source type | DC |
| AC input frequency | 50 - 60 Hz |
Design
| Product type | Tabletop router |
| LED indicators | Activity, LAN, Power, WAN |
| Product colour | Black |
Antenna
| Antenna design | External |
| Antennas quantity | 8 |
| Detachable antenna(s) | No |
Network
| VPN server | IPSEC, PPTP, OVPN |
| Ethernet LAN | Yes |
| Media server | Yes |
| Port forwarding | Yes |
| Port triggering | Yes |
| VPN Passthrough | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Dynamic DNS (DDNS) | Yes |
| Built-in FTP server | Yes |
| Ethernet LAN data rates | 10,100,1000,2500,10000 Mbit/s |
| Support Samba (storage) | Yes |
| Ethernet LAN interface type | 10 Gigabit Ethernet |
| Number of guest networks (5 GHz) | 3 |
| Number of guest networks (2.4 GHz) | 3 |
Features
| Flash memory | 256 MB |
| Internal memory | 2048 MB |
| Processor cores | 4 |
| Built-in processor | Yes |
| Processor frequency | 2000 MHz |
| Works with Amazon Alexa | Yes |
Security
| Firewall | Yes |
| Parental control | Yes |
| Beamforming frequency | 6 GHz |
WAN connection
| DSL WAN | No |
| Ethernet WAN | Yes |
| WAN connection type | RJ-45 |
Packaging content
| Warranty card | Yes |
| Cables included | LAN (RJ-45) |
| Quick start guide | Yes |
| AC adapter included | Yes |
Ports & interfaces
| USB port | Yes |
| DC-in jack | Yes |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
Management features
| Reset button | Yes |
| WPS push button | Yes |
| Intelligent Mesh technology | Yes |
Wireless LAN features
| Wi-Fi band | Tri-band (2.4 GHz / 5 GHz / 6 GHz) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| WLAN data transfer rate (max) | 4804 Mbit/s |
| WLAN data transfer rate (first band) | 1148 Mbit/s |
| WLAN data transfer rate (third band) | 4804 Mbit/s |
| WLAN data transfer rate (second band) | 4804 Mbit/s |
