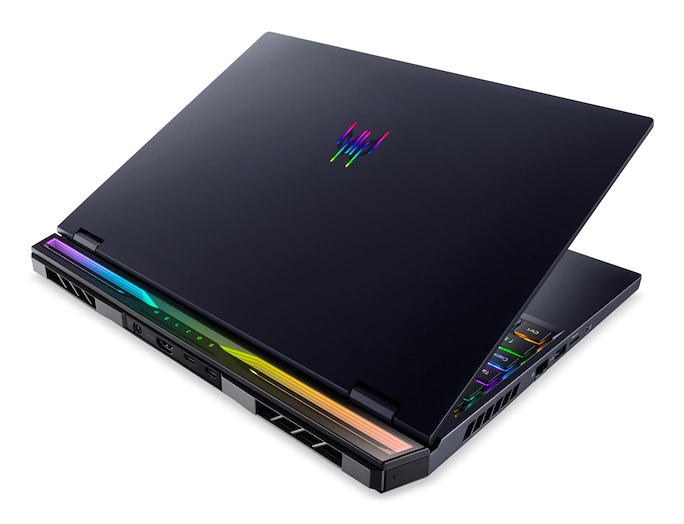

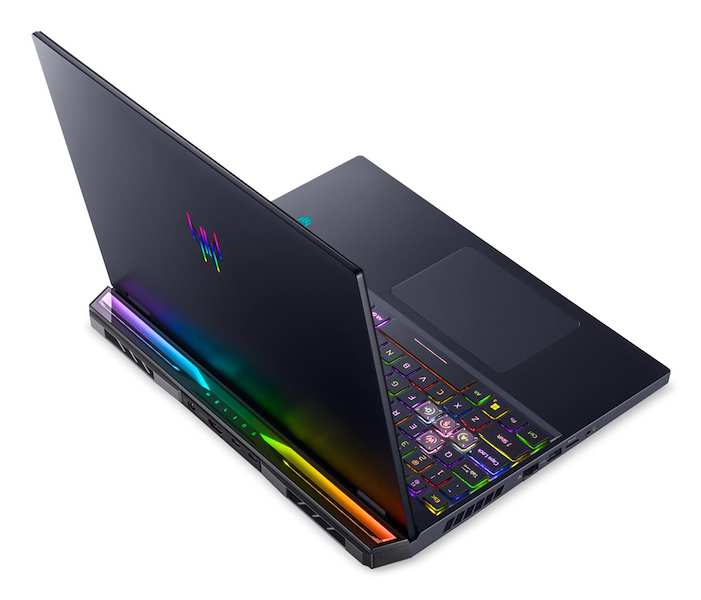

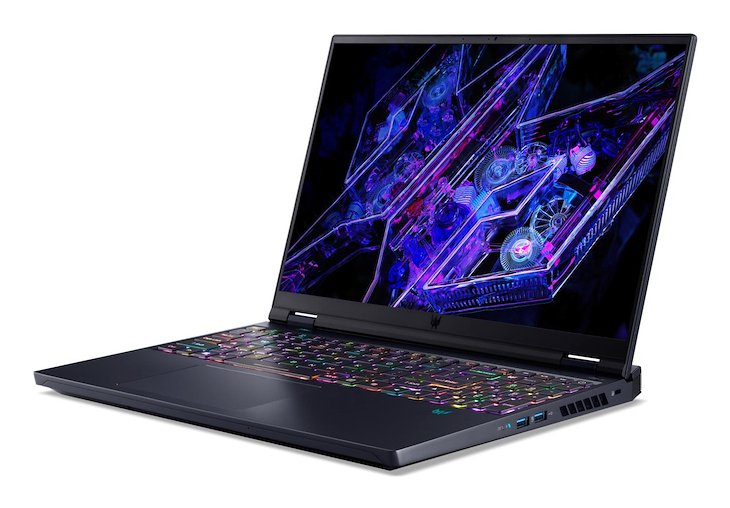

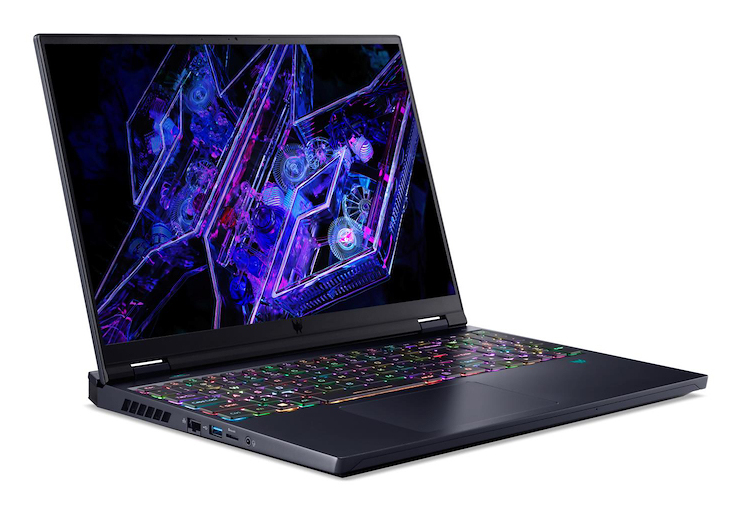

Acer · Laptop
Predator Helios 16
Acer Predator Helios 16 PH16-72-95s9. Product type: Laptop, Form factor: Clamshell. Processor family: Intel® Core™ i9, Processor model: i9-14900HX. Display diagonal: 40.6 cm (16"), HD type: WQXGA, Display resolution: 2560 x 1600 pixels. Internal memory: 32 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel® UHD Graphics, Discrete graphics card model: NVIDIA GeForce RTX 4080. Operating system installed: Windows 11 Home. Product colour: Black
Get this device repaired
Verified shops on RepairYour.Tech document every repair to the Device Passport — real records, not guesses.
Specifications
Audio
| Audio system | DTS:X Ultra |
|---|---|
| Built-in microphone | Yes |
Camera
| Front camera | Yes |
|---|
Design
| Form factor | Clamshell |
|---|---|
| Product type | Laptop |
| Product colour | Black |
| Market positioning | Gaming |
Memory
| Memory slots | 2x SO-DIMM |
|---|---|
| Internal memory | 32 GB |
| Memory clock speed | 5600 MHz |
| Memory form factor | SO-DIMM |
| Internal memory type | DDR5-SDRAM |
| Maximum internal memory | 32 GB |
Battery
| Battery capacity | 90 Wh |
|---|---|
| Battery life (max) | 4 h |
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 4 |
Display
| HD type | WQXGA |
|---|---|
| Panel type | IPS |
| Touchscreen | No |
| Display diagonal | 40.6 cm (16") |
| Display resolution | 2560 x 1600 pixels |
| Native aspect ratio | 16:10 |
| Maximum refresh rate | 240 Hz |
Network
| Bluetooth | Yes |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| Bluetooth version | 5.3 |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Storage
| SSD capacity | 1 TB |
|---|---|
| Storage media | SSD |
| SSD form factor | M.2 |
| Optical drive type | No |
| Total SSDs capacity | 1 TB |
| Card reader integrated | Yes |
| Total storage capacity | 1 TB |
| Compatible memory cards | MicroSD (TransFlash) |
| Number of SSDs installed | 1 |
Graphics
| Discrete graphics card | Yes |
|---|---|
| On-board graphics card | Yes |
| On-board GPU manufacturer | Intel |
| Discrete graphics card model | NVIDIA GeForce RTX 4080 |
| On-board graphics card model | Intel® UHD Graphics |
| Discrete graphics memory type | GDDR6 |
| On-board graphics card family | Intel® UHD Graphics |

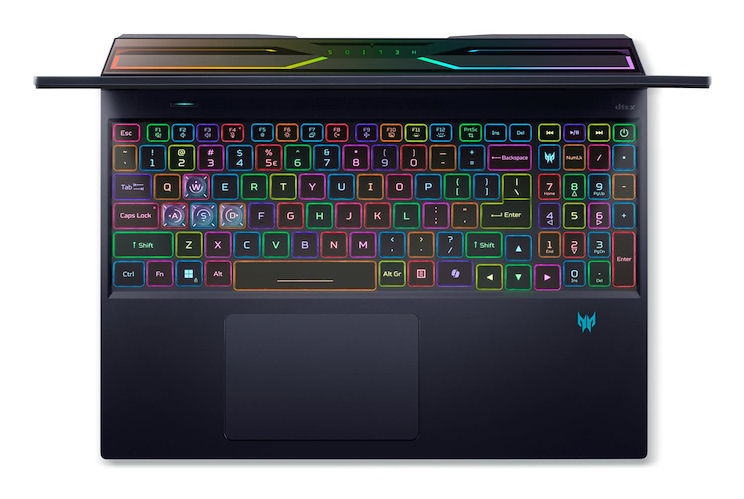

Keyboard
| Numeric keypad | Yes |
|---|---|
| Keyboard layout | QWERTY |
| Pointing device | Touchpad |
| Keyboard backlit | Yes |
| Keyboard language | Italian |
Software
| Operating system installed | Windows 11 Home |
|---|
Processor
| Tjunction | 100 °C |
|---|---|
| Processor cache | 36 MB |
| Processor cores | 24 |
| Processor model | i9-14900HX |
| Processor family | Intel® Core™ i9 |
| Processor socket | BGA 1964 |
| Processor threads | 32 |
| Maximum turbo power | 157 W |
| Processor base power | 55 W |
| Processor cache type | Smart Cache |
| Processor generation | Intel® Core™ i9 (14th gen) |
| Processor manufacturer | Intel |
| Processor boost frequency | 5.8 GHz |
| Efficient-core base frequency | 1.6 GHz |
| Performance-core base frequency | 2.2 GHz |
| Efficient-core Max Turbo Frequency | 4.1 GHz |
| Performance-core Max Turbo Frequency | 5.8 GHz |
Ports & interfaces
| HDMI version | 2.1 |
|---|---|
| HDMI ports quantity | 1 |
| Intel® Thunderbolt 4 | Yes |
| Combo headphone/mic port | Yes |
| Mini HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Thunderbolt 4 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
Processor special features
| Intel® OS Guard | Yes |
|---|---|
| Intel® Secure Key | Yes |
| CPU configuration (max) | 1 |
| Intel Flex Memory Access | Yes |
| Supported instruction sets | AVX 2.0, SSE4.1, SSE4.2 |
| Intel® Smart Sound Technology | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
